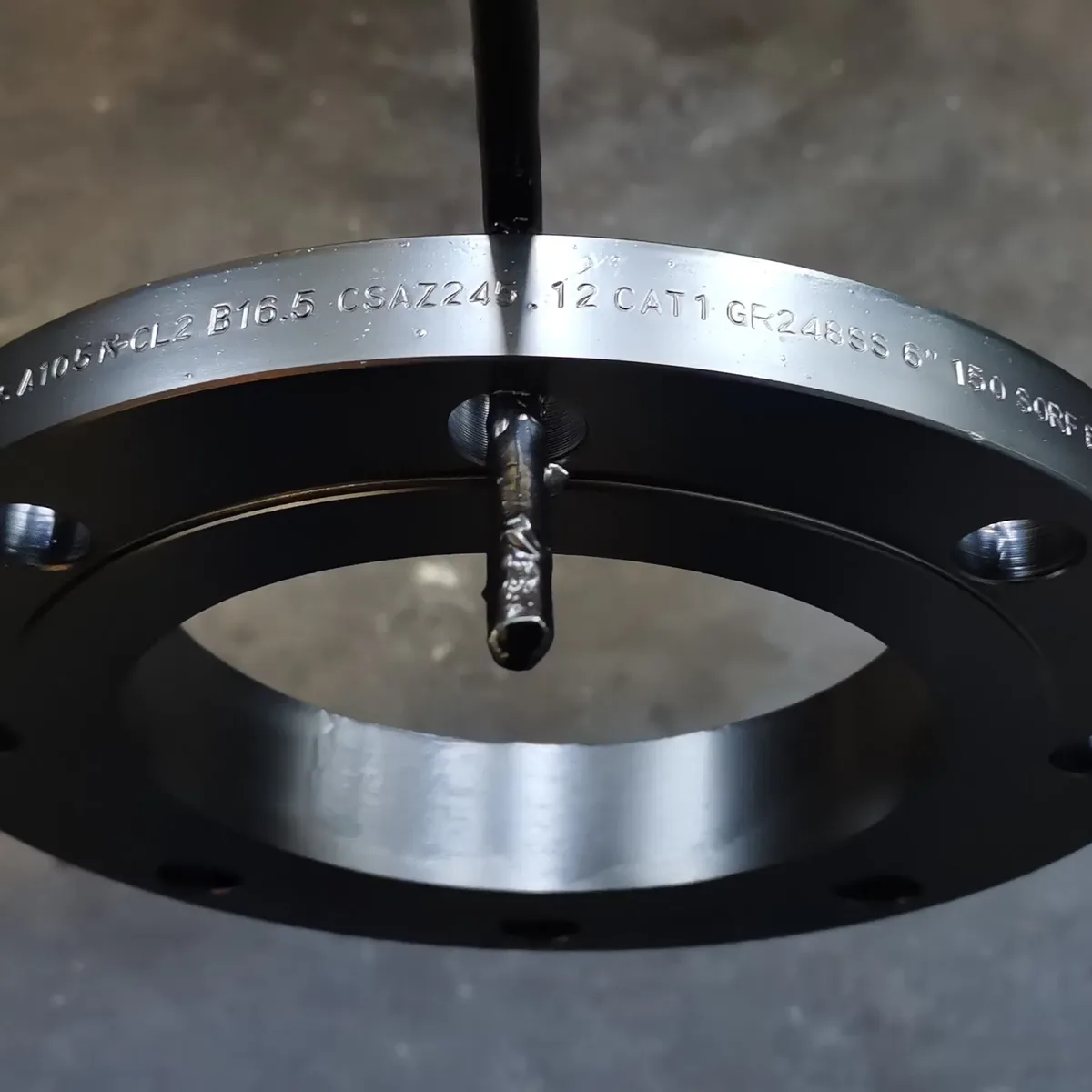

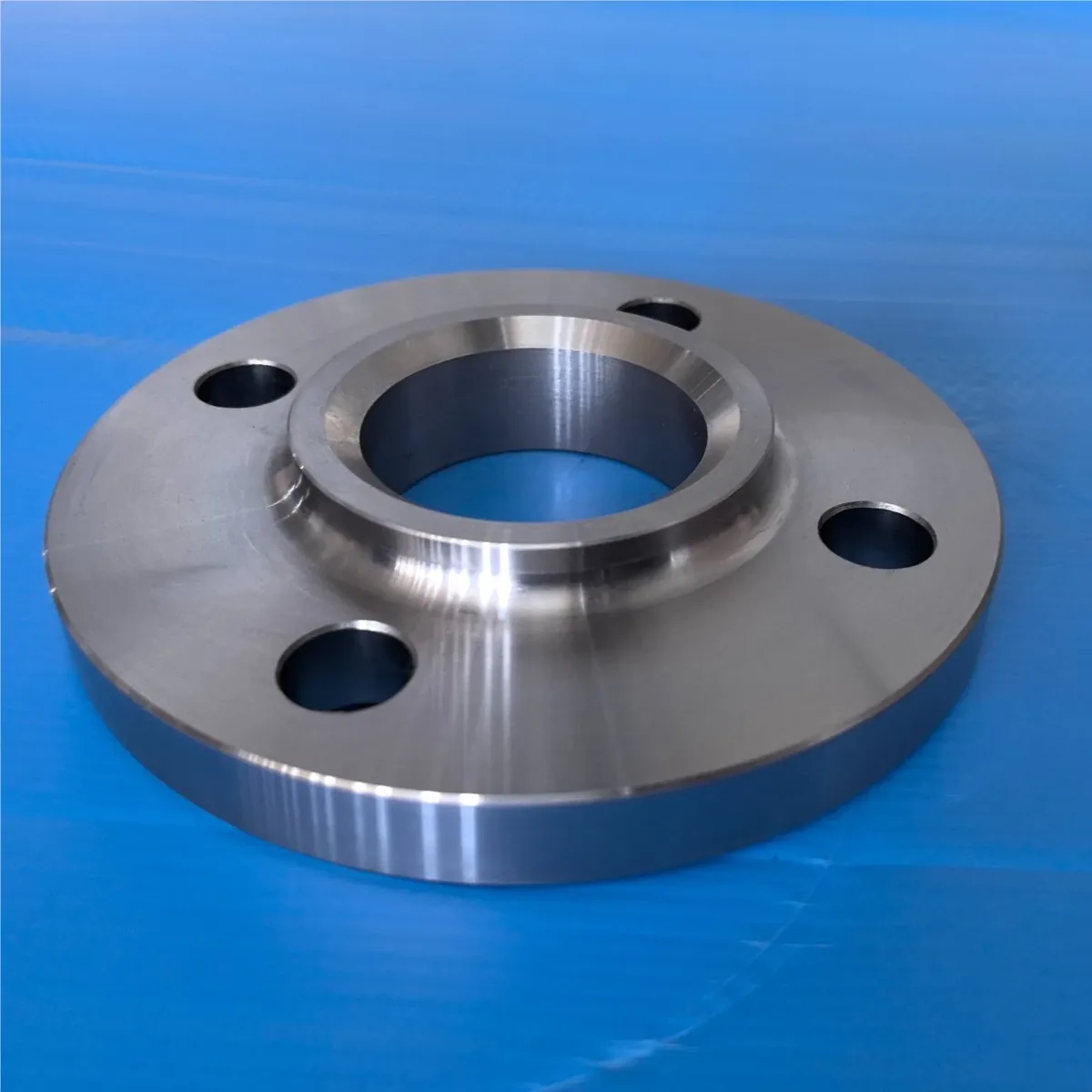

Slip-On Flanges
A slip-on flange slides over the pipe end and is fixed with two fillet welds, one inside and one outside. It is quicker to fit than a weld neck and tolerates small pipe-length errors, which is why utility and moderate-pressure lines specify it. We make them to ASME B16.5, EN 1092-1 Type 01, DIN and GOST flat welding flange tables or to your drawing, with an EN 10204 3.1 certificate per heat.
Also called: SO flange, slip on flange.
- Slides over the pipe · fillet welds
- ASME B16.5 · EN 1092-1 Type 01 · DIN · GOST
- Carbon · low-temperature · stainless · duplex
- Bore gauge check · MTC 3.1
Slip-On Flanges Technical Specification
| Standards | ASME B16.5 slip-on, EN 1092-1 Type 01, DIN and GOST flat welding flanges, or your drawing. |
|---|---|
| Grades |
|
| Bore | Sized to clear the pipe OD with room for the inside fillet weld; checked with a bore gauge. |
| Documents | EN 10204 3.1 certificate per heat; 3.2 with a third-party inspector on request (example); PMI on alloy grades; UT, MT or PT and third-party witness where the specification requires them. |
| Volume and order size | About 3,000 t of forgings a month across all grades; orders from 1 piece. |
| Typical service | Utility and moderate-pressure lines, where quick fit-up and tolerance to small pipe-length errors matter. |
Your standard, drawing revision and project specification govern.
FAQ
Slip-on or weld neck: which one?
A slip-on slides over the pipe and is held by two fillet welds; a weld neck is butt-welded through its tapered hub. Cyclic, high-temperature and high-pressure lines take weld necks; utility and moderate-pressure lines often take slip-ons. Side by side: Weld Neck vs Slip-On Flanges
Do you supply lap joint (loose) flanges?
Yes, with the stub end or collar: Lap Joint Flanges
Commercial terms
Orders from 1 piece · Free samples, you pay the freight · 30% deposit, balance when the goods reach the Chinese port you name · FOB, CFR or CIF
All commercial terms
- Reply time
- We reply to every RFQ within 8 hours.
- Service hours
- 08:00–20:00 Eastern Time (ET; UTC−5, UTC−4 in summer), every day, including public holidays.
- Minimum order
- 1 piece
- Samples
- Free of charge; you pay the freight.
- Lead time
- 9 to 30 days after drawing approval.
- Payment
- 30% deposit with the order; the balance is paid in full when the goods arrive at the port in China that you designate. The same applies to FOB, CFR and CIF.
- Packing
- Surfaces are coated with anti-rust oil. Most orders go in wooden cases, and every wooden case is fumigated. Large parts are steel-strapped onto pallets and wrapped in waterproof tarpaulin.
- Quality claims
- After you report a problem, we give you a handling plan within 8 hours.
- Delivery terms
- Standard: FOB the Chinese port you designate, Incoterms® 2020; we usually ship from Tianjin. On request: CFR or CIF to your destination port, quoted per RFQ. Other Incoterms® 2020 terms, except EXW and DDP, are quoted on request.
Send your RFQ or drawing directly to BLD Forge Direct.
Send your MR, datasheet or drawing as it is. We reply within 8 hours.
